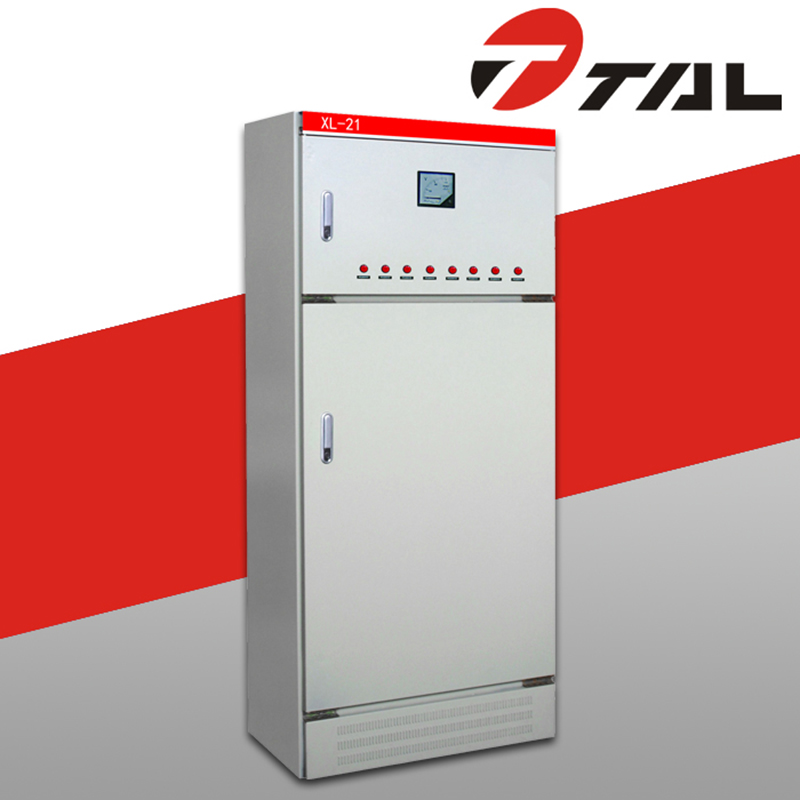

XL-21 low voltage power distribution switchgear (cabinet)

Product overview

XL-21 power distribution cabinet is suitable for power distribution, lighting distribution ,industry, construction and electromotor control which the AC frequency is 50~60HZ,rating voltage is 220/380~440V,and four wire three phase, fire wire three phases. The model and vibes are according by customers’ requirements.

 Basic technical parameters

Rated operational voltage

380V/660V

Rated  frequency

50/60HZ

Rated short-time resistance current

30/50KA

Rated current peak tolerance

63/105KA

Dielectric strength

2500 V/1min

Rated insulation voltage

660V

Protection level

IP 30/ IP40

Dimension

(600~1000)×370(470) ×(1600~2000) mm
