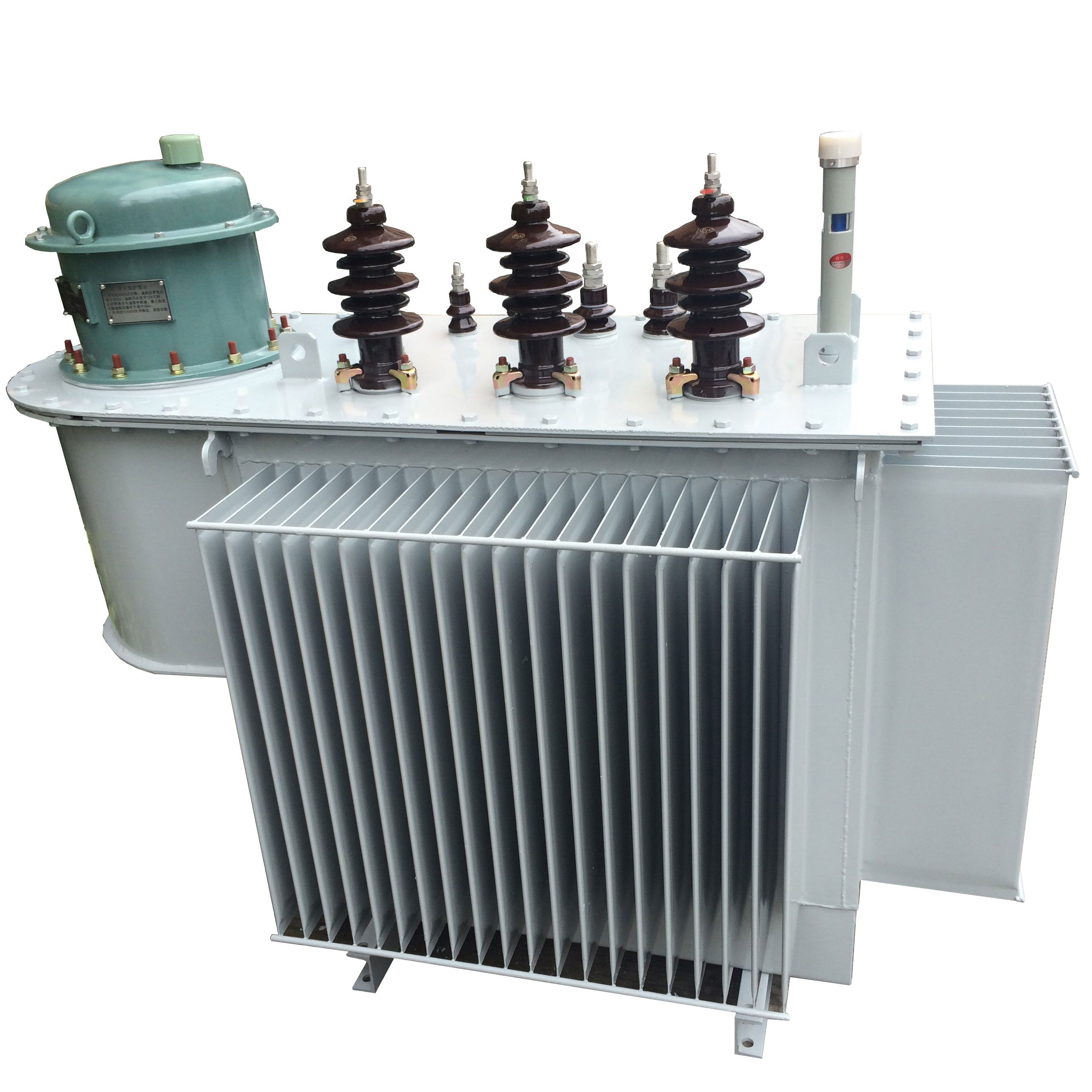

Load transfer capacity transformers

Product overview

For a long time, China’s rural power grid has a load distribution, seasonal, low average load characteristics, in rural power grid construction and transformation of choice should be consistent with the load characteristics of rural power transformer further reduce the transformer load loss and no-load current to meet current technical sophistication and reliability and the next few years, new clothes and replacement distribution transformers have. And I produced the load transfer capacity of rural power transformer according to this feature is the design of the transformer; fully meet the needs of rural power grids. Load transfer capacity of the transformer reversed through intelligent controller switches to adjust capacity to complete transformer high, low capacity automatic conversion process is a new energy –saving technology distribution transformers.

S11-M.ZT Type 10kV

Performance parameters

Rated capacityKVA

Voltage Combination and  tap  range

connection of transformer winding

No-load loss

(W)

Load loss (W)

No-load current (%)

Short circuit impedance (%)

High voltage

(KV)

High voltage tap range

( %)

Low voltage

(KV)

160(50)

200(63)

250(80)

315(100)

400(125)

500(160)

630(200)



10

10.5

11



±4x2.5%

±3x2.5%

±2x2.5%





  0.4



Dyn11

Yyn0

280(130)

340(150)

400(180)

480(200)

570(240)

680(280)

810(340)

2590(1030)

3215(1230)

3780(1480)

4540(1770)

5480(2130)

6520(2600)

8030(3060)

1.6(0.9)

1.5(0.9)

1.4(0.7)

1.4(0.7)

1.3(0.6)

1.2(0.6)

1.1(0.5)

4(4.0)

4(4.0)

4(4.0)

4(4.0)

4(4.0)

4(4.0)

4.5(4.0)











S13-M.ZT Type 10kV

Performance parameters

Rated capacityKVA

Voltage Combination and  tap  range

connection of transformer winding

No-load loss

(W)

Load loss (W)

No-load current (%)

Short circuit impedance (%)

High voltage

(KV)

High voltage tap range

( %)

Low voltage

(KV)

160(50)

200(63)

250(80)

315(100)

400(125)

500(160)

630(200)



10

10.5

11



±4x2.5%

±3x2.5%

±2x2.5%




  0.4



Dyn11

Yyn0

200(100)

240(110)

292(130)

340(150)

410(170)

480(200)

570(240)

2590(1030)

3215(1230)

3780(1480)

1540(1770)

5480(2130)

6520(2600)

8030(3060)

1.3(0.6)

1.2(0.6)

1.1(0.6)

1.1(0.6)

1.0(0.5)

0.9(0.5)

0.8(0.4)

4(4.0)

4(4.0)

4(4.0)

4(4.0)

4(4.0)

4(4.0)

4.5(4.0)
