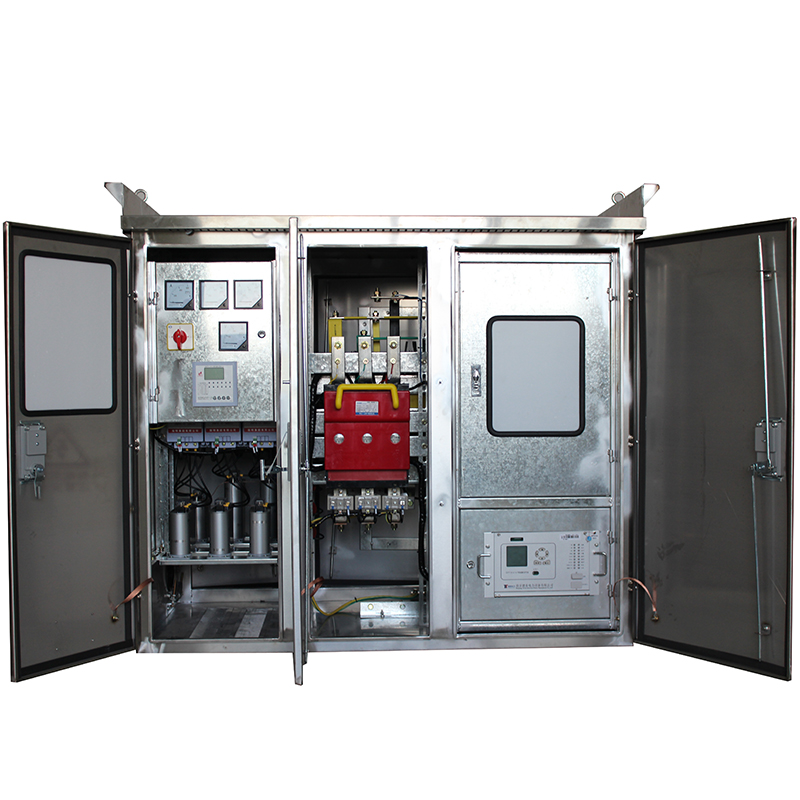

JP integrated distribution cabinet

JP integrated distribution box(compensation/control/terminal/lighting)

Product overview

JP series of outdoor integrated distribution box, is a set of metering, outlet, reactive power compensation and other functions into one comprehensive reach outdoor distribution equipment, has a short circuit, overload, over-voltage, leakage protection and other functions, small size, appearance, economy practical, outdoor column transformer mounted on poles, is ideal for a new generation of urban and rural power grids and distribution products.

Use of the  environment

Ambient temperature:-25℃ +40℃；

Relative humidity: daily average of not more than 90%;

Altitude: not more than 2000m;

Installation place: in the absence of severe vibration and shock, non-corrosive gas.

Structure features

Discrete and horizontal box structure, the shell is made of high-quality non-pound 2mm steel plate bending multiple fold process  (or the use of honeycomb sandwich structure of stainless steel double-composite panels, flame retardant, environmental protection, thermal insulation, anti-condensation properties), using a special stainless steel welding technology, high overall strength after forming the cabinet, the surface smooth as a mirror, leaving no trace of the weld; internal mounting beam (board) for the hot dip galvanizing process, to ensure that twenty years does not rust; front casing open, user-friendly operation and maintenance, high elastic around the door inlaid with anti-aging sealing strip, are equipped with every shade of two door locks, Ming lock with attempts to prevent rust storm hood; closed with a metering chamber seal means; incoming cable box side with rain preventing foreign bodies through the tube, the bottom punch ventilation holes and cable entry hole, top with a duct and screen, waterproof, rust, dust, foreign body functions, protection class: IP54.

The main technical parameters
