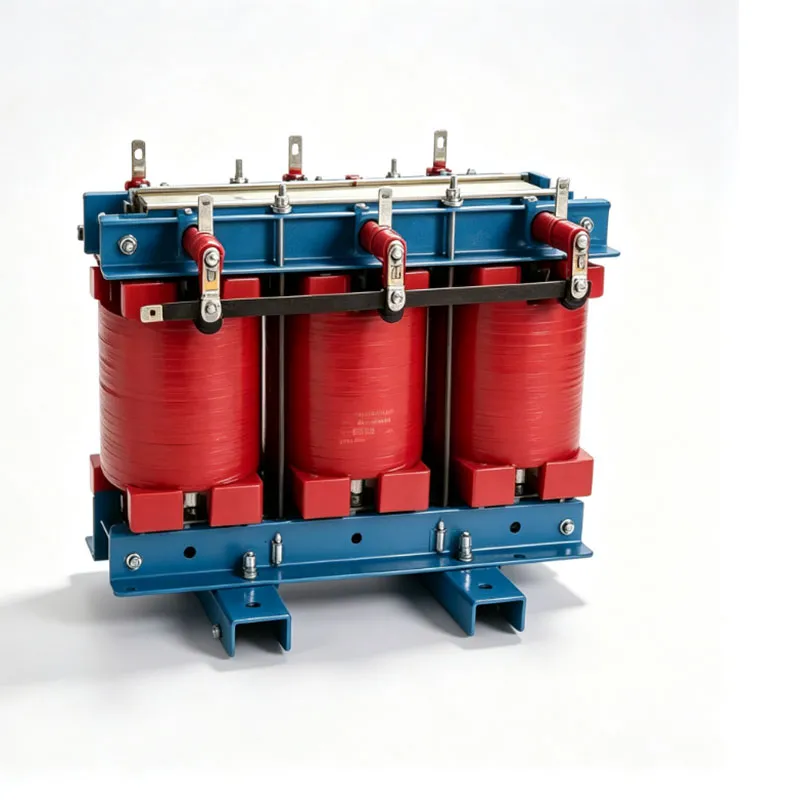

Dry Type Transformer with Dual Low Voltage Outputs

Basic Info.

This 160 kVA dry type transformer adopts a dual low-voltage output configuration, providing two low-voltage supply levels of 0.4 kV and 0.23 kV.

Compared with using separate transformers for different voltage requirements, the dual low-voltage configuration allows multiple voltage levels to be integrated into one transformer solution, helping simplify system configuration and equipment installation.

The transformer is suitable for applications where different low-voltage loads need to be supplied from the same power distribution system.

Typical Applications

• Industrial Equipment

Used to supply different low-voltage requirements for industrial machinery and supporting equipment.

• Factory Power Distribution

Suitable for factories where both 400 V and 230 V loads are present within the same electrical system.

• Auxiliary Power Systems

The 230 V output can be used for suitable auxiliary equipment and low-voltage loads according to project requirements.

• Control and Automation Systems

Suitable for applications where control, auxiliary and power equipment require different low-voltage supply levels.

• Customized Power Distribution Projects

Applicable to projects requiring integrated 0.4 kV and 0.23 kV power supply from a single transformer.
