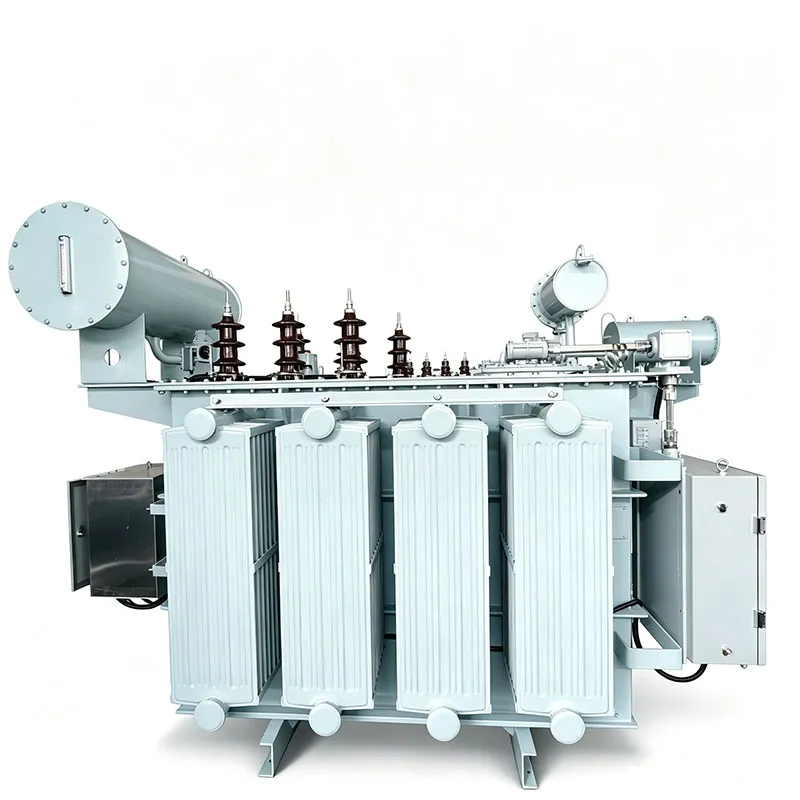

10,000 kVA oil-immersed automatic voltage regulating transformer with copper winding

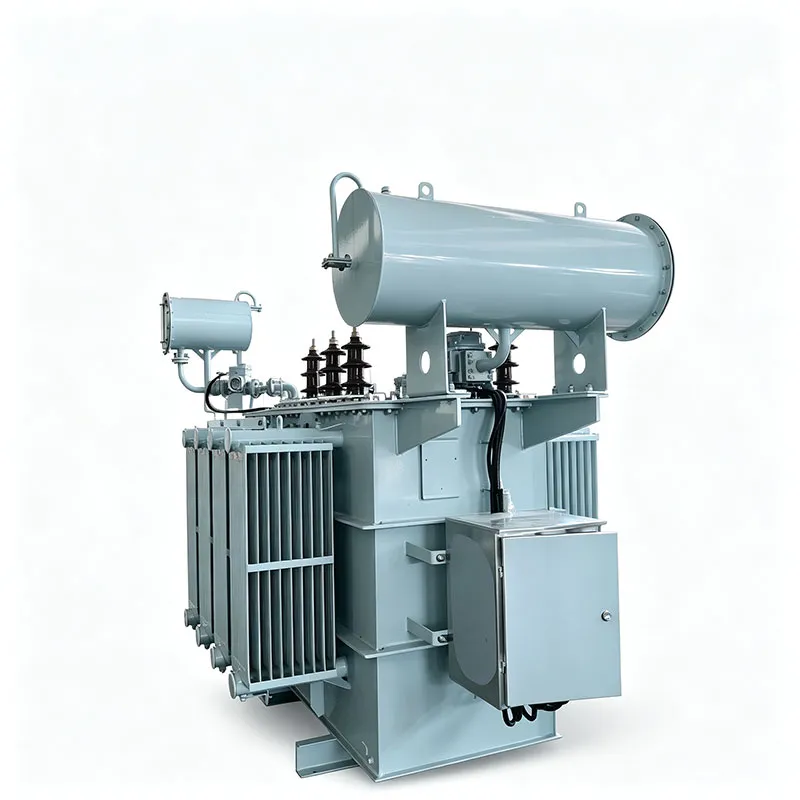

10,000 kVA transformer with on-load tap changer for automatic voltage regulation

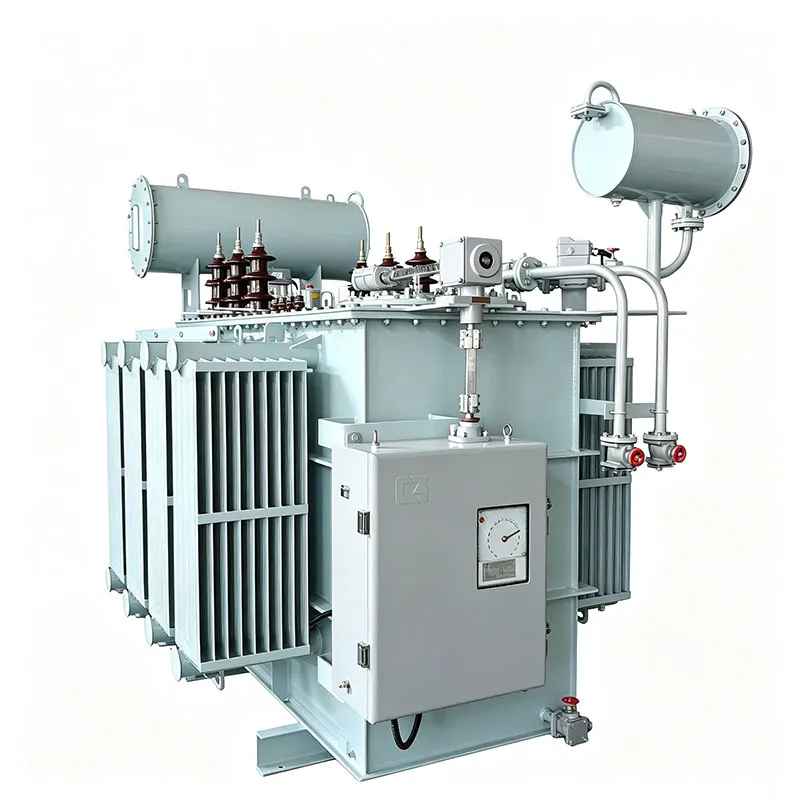

10,000 kVA oil-immersed transformer for outdoor power distribution

automatic voltage regulating transformer

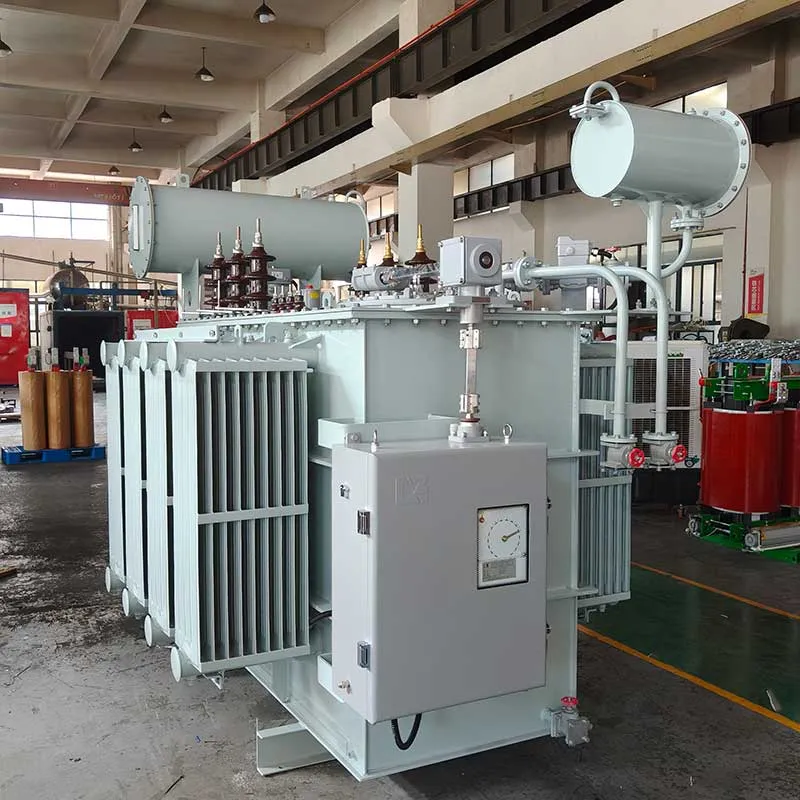

10,000 kVA 22 kV Oil-Immersed Automatic Voltage Regulating Transformer with Copper Winding

The 10,000 kVA Three Phase Oil-Immersed Automatic Voltage Regulator is designed for outdoor power distribution systems requiring automatic voltage regulation and compensation.

With a rated capacity of 10,000 kVA, the unit features a 22 kV rated output voltage, copper windings and a 14-position on-load automatic voltage regulation system. The input voltage can be adjusted from 24 kV to 14.64 kV through the specified tap configuration.

The oil-immersed ONAN cooling design provides natural heat dissipation for outdoor operation. The regulator is suitable for distribution networks, industrial power systems, transmission line platforms and other applications where voltage conditions need to be continuously regulated.

Inquire Now

Basic Info.

The 10,000 kVA Three Phase Oil-Immersed Automatic Voltage Regulator is designed for outdoor voltage regulation and compensation in three-phase power distribution systems.

The regulator uses an on-load automatic voltage regulation system with 14 tap positions. Each tap provides a 3.0% voltage adjustment, with a specified regulation range of (+0–13) × 3.0%.

The unit adopts copper windings, oil-immersed ONAN cooling and outdoor installation, providing a configuration for high-capacity power distribution applications.

Performance parameters for reference

Parameter	Specification
Rated Capacity	10,000 kVA
Frequency	50 Hz
Transformer Type	Oil-Immersed Automatic Voltage Regulating Transformer
Rated Output Voltage	22 kV
Input Voltage / Tap Range	24 kV–14.64 kV
Connection Symbol	Ya0
Winding Material	Copper
Cooling	ONAN – Oil-Immersed Natural Air Cooling
Voltage Regulation	On-Load Automatic Voltage Regulation
Tap Positions	14
Tap Range	(+0–13) × 3.0%
Insulation Class	Class A
Standard	IEC 60076

Resin cast dry-type transformer

Automatic Voltage Regulation with On-Load Tap Changer

The 10,000 kVA three-phase oil-immersed automatic voltage regulating transformers is equipped with an on-load automatic voltage regulation system, allowing the output voltage to be adjusted while the transformer remains energized.

The 14-position tap configuration provides multiple voltage adjustment points across the specified input voltage range. This design can help maintain a more stable output voltage when the supply-side voltage changes during normal power system operation.

The automatic regulation function is particularly useful for power networks where voltage fluctuations may occur due to changes in load, transmission conditions or grid operating conditions.

Copper Winding for High-Capacity Applications

The transformer uses copper windings for both electrical performance and mechanical reliability.

Copper provides good electrical conductivity and is widely used in high-capacity power transformers. For a 10,000 kVA transformer, the winding system is designed to handle the required operating current while maintaining the electrical and mechanical characteristics specified for the project.

The winding design is manufactured according to the specified voltage, capacity, connection configuration and performance requirements.

Ya0 Connection Symbol

The transformer uses a Ya0 connection symbol, defining the specified winding connection and phase displacement characteristics of the transformer.

The connection configuration is selected according to the requirements of the power system and can be confirmed during technical design and project engineering.

Second, the core advantages and characteristics of the product

Application scenarios

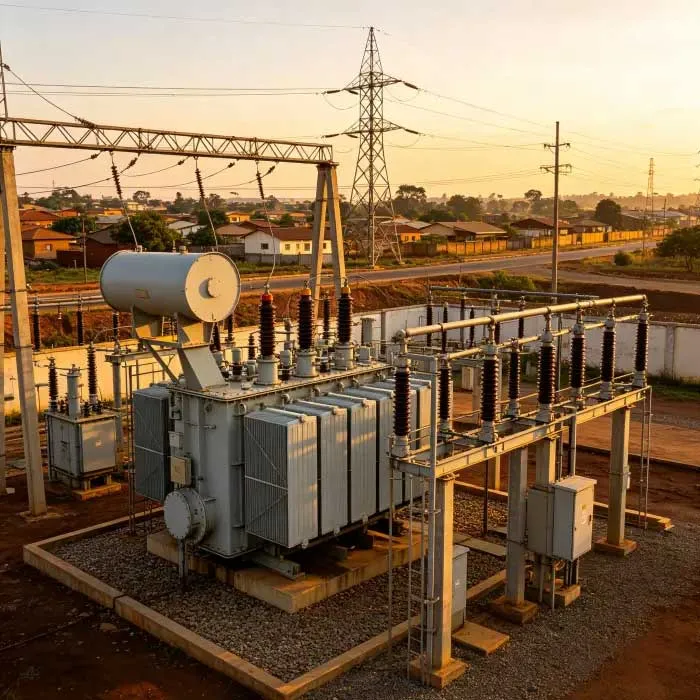

Utility Distribution Networks

Suitable for three-phase distribution systems requiring voltage regulation and compensation under changing grid conditions.

Mining and Heavy Industrial Projects

Suitable for power systems serving mining operations and other high-capacity industrial applications.

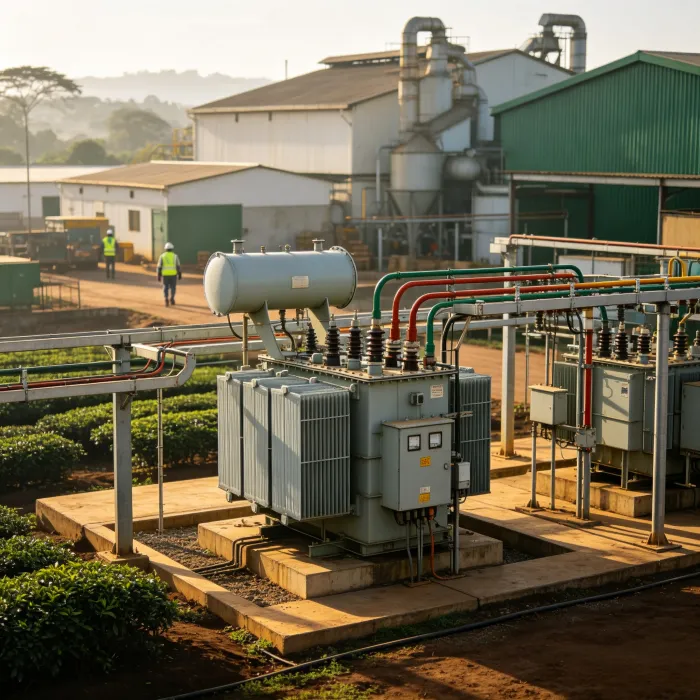

Long-Distance Power Distribution

The automatic voltage regulation function can help compensate for voltage variations associated with distribution distance, line conditions and changing loads.

Quality Control and Factory Testing

Taili Electric carries out manufacturing inspection and electrical testing throughout the production process.

Quality control covers key components and manufacturing stages, including:

· Core and winding inspection

· Insulation system inspection

· Transformer oil and tank assembly

· Tap changer installation

· Automatic voltage regulation system

· Bushing and connection inspection

· Final assembly inspection

· Routine electrical testing

Test documentation can be provided according to the agreed project requirements.

Taili Electric – Oil-Immersed Transformer Manufacturer

Taili Electric manufactures oil-immersed transformers, dry-type transformers and power distribution equipment for international power projects.

For high-capacity applications such as 10,000 kVA automatic voltage regulating transformers, transformer design can be configured according to the required voltage level, tap-changing range, cooling system, installation environment and electrical performance.Different power systems require different voltage and installation configurations. Taili Electric can provide customized transformer solutions based on project requirements。
