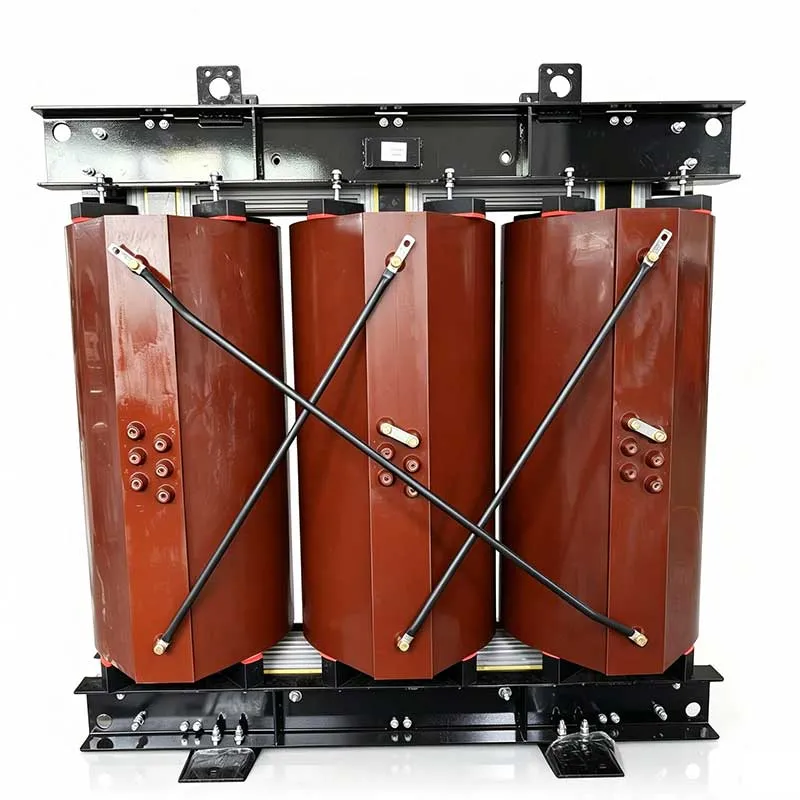

2500kVA 6/0.4kV Dry Type Transformer | Dyn11, 8% Impedance

The 2500kVA 6/0.4kV dry type transformer is designed for medium-voltage power distribution systems requiring high capacity, stable operation and low-maintenance performance.

With a rated capacity of 2500kVA, the transformer converts 6kV medium voltage to 0.4kV low voltage for industrial and commercial power distribution. It features a Dyn11 connection group, aluminum windings and 8% impedance, providing a practical configuration for high-capacity distribution applications.

The transformer uses natural air cooling and was manufactured for shipment to Russia according to the electrical requirements of the project.

Inquire Now Next Product

Basic Info.

This dry type transformer is configured for a 6kV high-voltage input and 0.4kV low-voltage output. It is suitable for medium-voltage distribution systems where reliable power conversion is required for downstream electrical equipment and loads.

With a rated capacity of 2500kVA, this transformer is designed for high-capacity power distribution applications. It can be used in industrial facilities, commercial buildings, infrastructure projects and other medium-voltage distribution systems.

The transformer adopts a Dyn11 connection group, a widely used configuration for three-phase distribution transformers. This connection provides a suitable electrical configuration for medium-voltage power distribution systems.

The transformer uses aluminum windings as a cost-effective winding solution for the project. The winding design is selected according to the rated capacity, voltage level and operating requirements.

The transformer has an impedance voltage of 8%. Transformer impedance is an important design parameter that affects short-circuit current and voltage regulation in the distribution system.

The appropriate impedance value should be selected according to the system short-circuit capacity, voltage regulation requirements and overall project conditions.

The transformer adopts natural air cooling, using natural air circulation to dissipate heat generated during operation. This provides a simple cooling configuration with low maintenance requirements for dry type transformer applications.

Performance parameters for reference

Rated Capacity	2500kVA
Voltage Ratio	6kV / 0.4kV
Vector Group	Dyn11
Winding Material	High-purity aluminum winding
Short-circuit Impedance	8% (customizable on request)
Rated Frequency	50Hz/60Hz (optional)
Cooling Method	AN/AF
Insulation Class	H-class /F-class

Applications

The 2500kVA 6/0.4kV dry type transformer can be used for:

· Industrial power distribution

· Commercial power distribution

· Factory power supply systems

· Infrastructure projects

· Medium-voltage distribution substations

· Large electrical facilities

Production & Quality Standard

All our dry type transformers are manufactured in strict accordance with IEC 60076, IEC 60726, GB/T 10228 and other international and national standards. Each product undergoes strict factory tests including voltage resistance, partial discharge, loss detection and temperature rise test, and supports CE, ISO and other certification cooperation. Customized parameters, protection grades and installation accessories are available to meet personalized project needs.

Customized Transformer Solutions

Different power distribution projects may require different voltage levels, capacities, connection groups, winding materials and impedance values.

Taili Electric provides customized dry type transformer solutions based on specific project requirements.

Customization can include:

· Rated capacity

· High-voltage and low-voltage ratings

· Connection group

· Copper or aluminum windings

· Impedance voltage

· Cooling method

· Installation and operating conditions

Our engineering team can develop the appropriate transformer configuration based on the customer's electrical system and project requirements.
