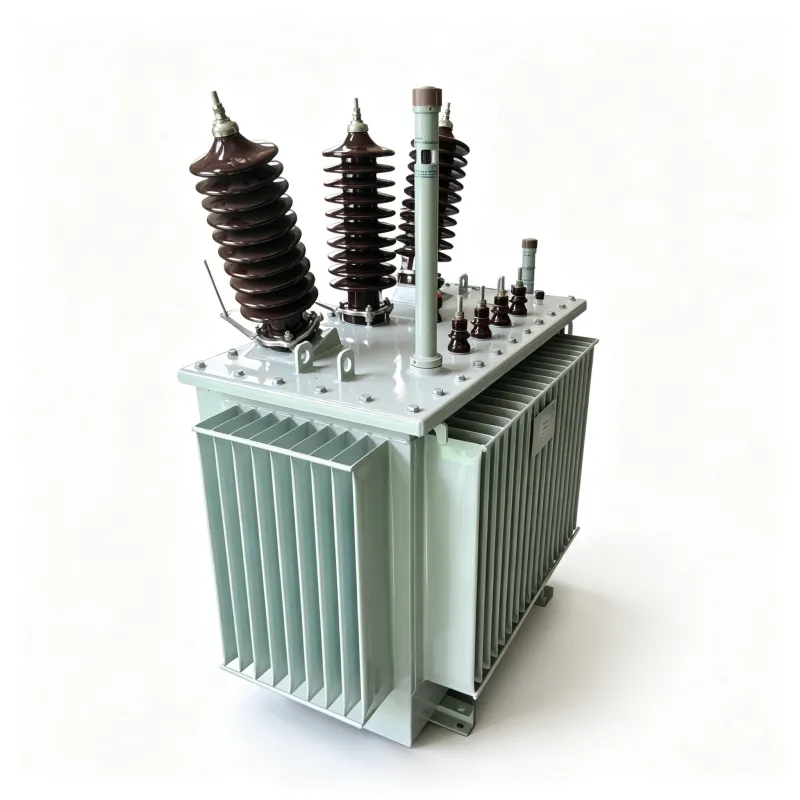

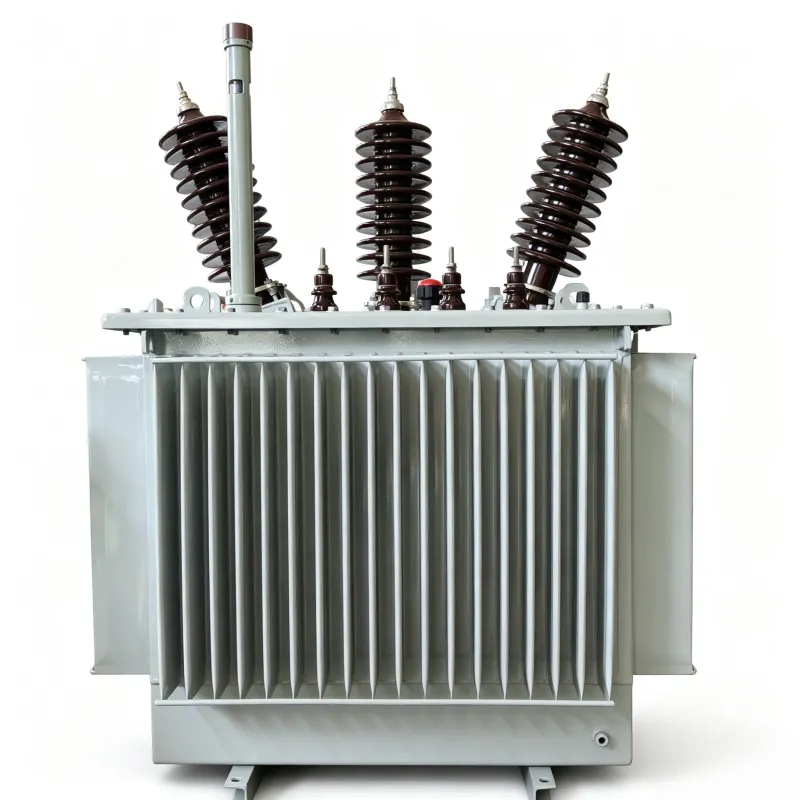

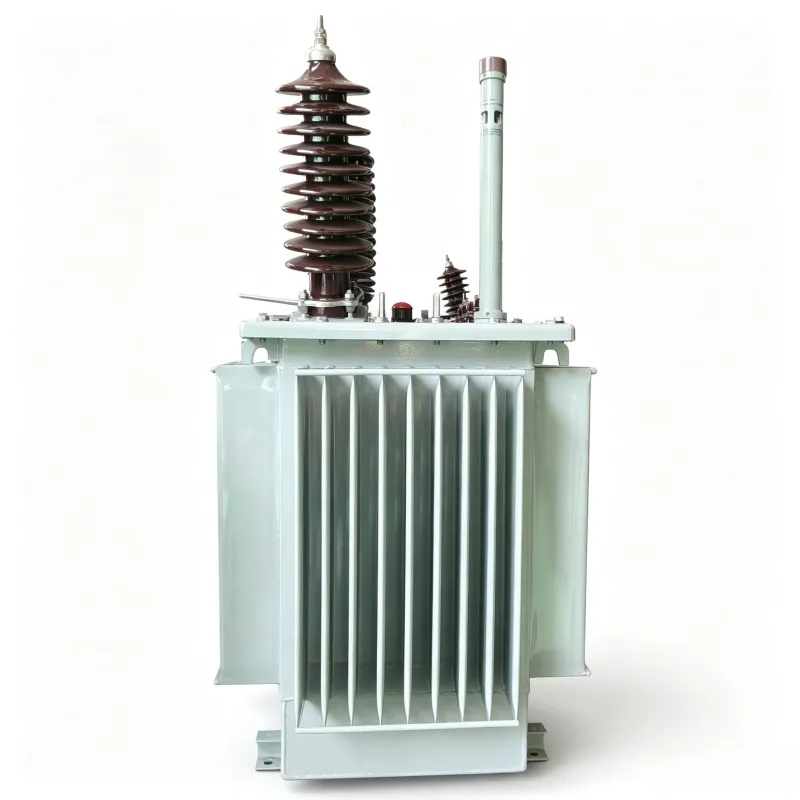

33kV Oil Immersed Distribution Transformer Three Phase Step Down Power Transformer (Kenya KPLC Standard)

33kV Oil Immersed Distribution Transformer Three Phase Step Down Power Transformer (Kenya KPLC Standard)

The TAILI 33kV Oil Immersed Distribution Transformer is specifically engineered for medium-voltage power distribution networks across Kenya and East Africa. Designed in strict compliance with IEC 60076 and regional electric utility specifications (such as KPLC/NEMA standards), this 33kV step-down transformer delivers high impulse withstand levels, efficient natural oil cooling (ONAN), and tropicalized insulation to withstand high ambient temperatures, heavy cyclic loads, and severe lightning activity.

Inquire Now Next Product

Basic Info

High Efficiency 33kV Oil Immersed Distribution Transformer is specially designed for medium-voltage distribution networks in Kenya and East Africa. It strictly complies with IEC 60076, KPLC and NEMA standards, adopting ONAN natural oil cooling and tropicalized insulation to adapt to high ambient temperature, heavy cyclic load and frequent lightning surge environments. It applies high-permeability grain-oriented silicon steel core and high-density aluminum winding, with hermetically sealed corrugated tank structure to slow oil aging and cut maintenance work. Reinforced interlayer winding insulation delivers strong lightning impulse withstand and short-circuit resistance, ideal for rural power grids and industrial power distribution projects across East Africa.

Technical Specifications

Parameter / Feature	Technical Standard & Specification
Primary Rated Voltage	33kV
Secondary Rated Voltage	0.415kV
Rated Capacity Range	200KVA
Phase & Frequency	3-Phase, 50Hz (Kenya Grid Standard)
Vector Group	Dyn11
Cooling Method	ONAN (Oil Natural Air Natural)
Insulation Class & Fluid	Class A Mineral Transformer Oil (IEC 60296 Compliant)
Tap Changer Range	Off-Circuit Tap Changer: ±2×2.5% or ±5%
Altitude & Ambient Temp	Up to 2,000m altitude / Ambient Temp up to 45°C
Standard Compliance	IEC 60076, ISO9001, CE Certified, KPLC Grid Compatible

.Quality Assurance: Certifications, Testing, & Global Shipments

We strictly adhere to international manufacturing standards to guarantee that every unit delivered to your site meets precise performance thresholds.

International Certifications:

Our facility and products operate under ISO9001 Quality Management, ISO14001 Environmental Management, CE, and international IEEE/IEC standards.

100% Factory Routine & Type Testing:

Every unit undergoes rigorous routine testing before dispatch, including Partial Discharge (PD) measurement (≤5pC), Induced Overvoltage Withstand Test, Temperature Rise Testing, and Insulation Resistance verification.

Dispatch & Packaging Integrity:

Enclosures feature heavy-duty anti-corrosion outdoor coatings and oil-level protection locks, anchored inside reinforced shipping frames for ocean transit

Target Applications & Deployment Environments

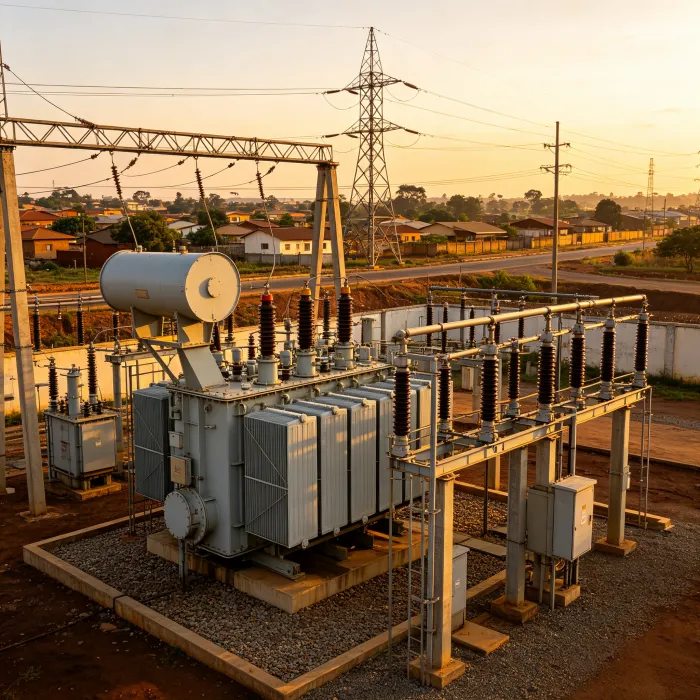

National & Regional Grid Substations

Providing continuous, low-loss municipal and rural electrification power distribution for public utility companies and residential communities.

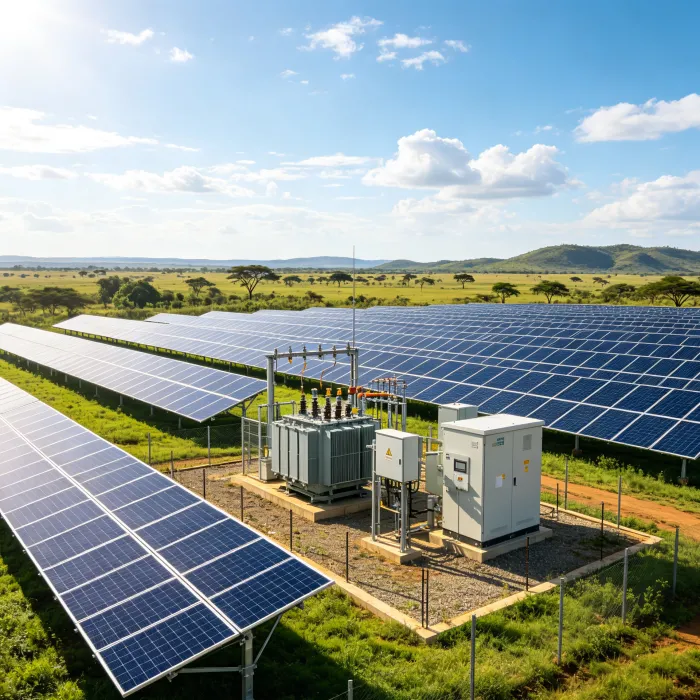

Renewable Energy & Solar Farms

Stepping down or stepping up grid voltage for utility-scale solar PV power farms and hybrid mini-grid energy projects across Kenya.

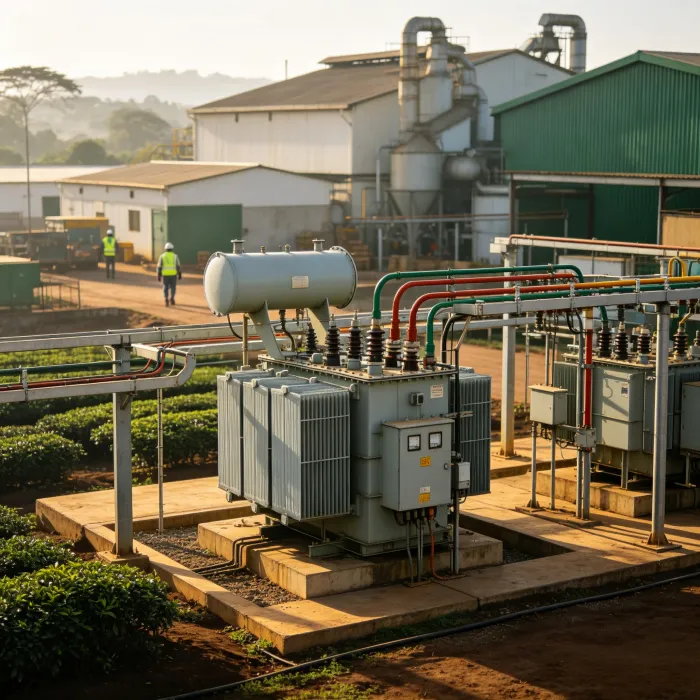

Industrial & Commercial Plants

Delivering stable 415V/400V power supply for heavy industrial manufacturing, tea processing factories, mining sites, and commercial complexes in East Africa.

Why Choose Us

Our 33kV oil immersed distribution transformer provides reliable medium-voltage distribution solution for Kenya and East-Africa grid and industrial projects.

Localized tropicalized engineering solution:
Optimized thermal margin and anti-corrosion surface treatment to fit local high temperature, humidity and coastal climate.
Strong lightning and short-circuit resistance:
Reinforced winding insulation structure to handle frequent lightning surges and grid fault current in East-Africa rural network.
Low-loss energy-saving performance:
Premium grain-oriented silicon steel core cuts no-load loss and helps customers reduce long-term power consumption cost.
Hermetically sealed low-maintenance structure:
Corrugated tank isolates oil from air and moisture, delays oil degradation and lowers site maintenance frequency.
Complete pre-delivery testing:
Each transformer passes full set of routine tests including winding resistance, ratio test, dielectric withstand and pressure oil leakage inspection before shipment.

FAQ

Q1 What standards does this 33kV transformer comply with？

A1 It complies with IEC 60076 international standard, and meets KPLC and NEMA specification requirements for Kenya local power grid.

Q2 What environment can this transformer adapt to？

A2 Designed for tropical area, it can work at ambient temperature up to 45°C, altitude up to 2000m, also suitable for high-humidity coastal and heavy-lightning-stroke areas.

Q3 Is capacity and tap position customizable？

A3 Yes, multiple capacity options are available. Off-circuit tap changer can be configured as ±2×2.5% or ±5% according to project requirements.

Q4 What cooling type is adopted？

A4 Standard cooling type is ONAN oil natural air natural.

Q5 What kind of projects is this transformer suitable for？

A5 It fits national grid substations, rural electrification, mining, tea factories, commercial parks and solar PV mini-grid projects in Kenya and East Africa.
